Complete heat pump kit, ducted
Mach 15 Heat Pump
15,000 BTU rooftop heat pump with the ceiling assembly, wall thermostat and roof gasket it needs
In stock. Ships today if ordered by 12 PM ET on a weekday.
Right for your RV if
- Your roof opening is 14 x 14 in, the standard for Coleman-Mach, Dometic, Furrion and Advent.
- Cold air comes from vents along the ceiling. No vents? Non-ducted kits
- You want heat on shore power without burning propane, and you keep the furnace for nights near freezing, when the heat pump shuts off.
- Free shippingOrders over $200, lower 48
- Fit GuaranteeDoesn't fit your roof, it comes back free
- 30-day returnsUnopened, 10 percent restocking
- 2-year Coleman-Mach warrantyWe file the claim for you
What's in the box, top to bottom
The ceiling assembly is the part most stores leave out, and the unit won't run without it.

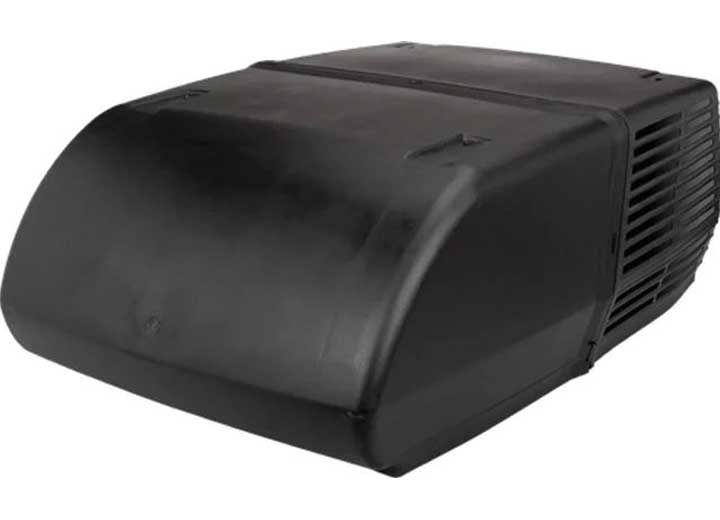

Rooftop unit
Mach 15 Heat Pump 15,000 BTU RV Air Conditioner, textured black
Roof gasket and install kit
RV AC Roof Gasket and Install Kit, 14 x 14 in
Ceiling assembly
Heat Pump ChillGrille Ducted Ceiling Assembly, heat ready
Wall thermostat
WiFi Wall Thermostat, 12v heat/cool, app control
Reviews
Full specifications
| Kit contents | 38004-069 + 8630A635 + 9420-391 + 8332-3301 |
|---|---|
| Includes | rooftop heat pump + heat pump ducted ceiling assembly with control box + WiFi wall thermostat + roof gasket. |
| Cooling | 15,000 BTU |
| Heat pump heating | 12,700 BTU |
| Running current | 14.8 A cooling, 15.4 A heating at 115 V |
| Height above roof | 13.8 in |
| Shipping weight | 105 lb |
| Roof opening | 14 x 14 in |
| Airflow | Ducted |
| Heat | Heat pump, 12,700 BTU heating |
| Controls | WiFi wall thermostat |
| Shroud | Textured Black |
| Replaces | Dometic Brisk II, Dometic FreshJet 3, Furrion Chill, Advent / Atwood, Any 14 x 14 in ducted rooftop unit |
| Warranty | 2-year Coleman-Mach limited warranty |
Questions buyers ask
Questions buyers ask
Is this everything I need?
Yes, for a ducted RV with lateral roof ducts: heat pump, heat pump ChillGrille with its control box, WiFi wall thermostat, gasket. Your existing 12 V thermostat wire usually reaches the new stat.
Do I need the 9530A751 control package?
No. Coleman-Mach's 2025 catalog pairs the 8630A635 with a wall thermostat only; the heat pump control box is built in.
How cold can it heat?
A heat pump moves heat in from outside, so it works best in mild weather and shuts off near freezing. Keep the furnace for cold nights; the heat pump saves propane on cool mornings and shoulder-season evenings.
Will it run on my generator?
Plan on 3,500 W or more, as for any 15,000 BTU rooftop unit. Coleman-Mach does not publish a starting current for the heat pump models, so we do not promise a small-inverter start. Ask us before you rely on a 2,200 W generator.
Does the WiFi thermostat work without WiFi?
Yes, as a normal digital thermostat on the wall. The app needs a 2.4 GHz network.
How does it ship?
Ground, free over $200 in the lower 48, from the nearest US warehouse. In-stock orders placed by 12 PM ET on a weekday ship the same day. Inspect on delivery; report damage within 24 hours with photos and we file the claim.
Shipping, returns and warranty
Free ground shipping in the lower 48 on orders over $200. In-stock orders placed by 12 PM ET on a weekday ship the same day from the nearest US warehouse. Check the box on delivery and report damage within 24 hours with photos; we file the carrier claim.
Returns within 30 days, unopened, with a 10 percent restocking fee; buyer pays return shipping. Kits that don't fit your opening and airflow come back free under the Fit Guarantee.
2-year Coleman-Mach limited warranty. We handle the claim with Airxcel.
About Coleman-Mach
About Coleman-Mach
Coleman-Mach rooftop air conditioners are built by Airxcel in Wichita, Kansas, and have been since 1967. They are the original equipment on more RVs than any other brand, which is why the ceiling assemblies, controls and repair parts are still available for units twenty years old. Every unit carries the Coleman-Mach 2-year limited warranty; Kate RV handles the claim with Airxcel for you.
