Ceiling assembly

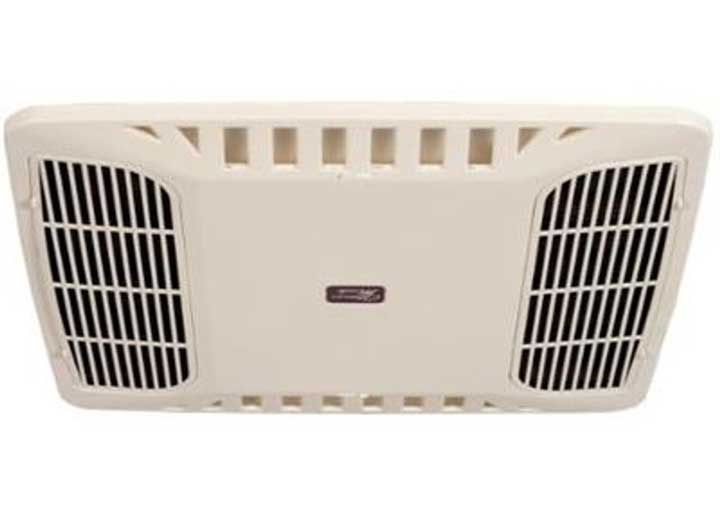

8630A635 Heat Pump ChillGrille Ducted Ceiling Assembly
Heat pump ChillGrille ducted ceiling assembly with control box, filters and hardware. Thermostat and rooftop unit sold separately.
In stock. Ships today if ordered by 12 PM ET on a weekday.
Check the fit
- Standard 14 x 14 in roof opening.
- Needs: Coleman-Mach heat pump rooftop unit.
12 V heat pump wall thermostat (not included).
Roof gasket 8332-3301 (not included). - Not for non-ducted RVs
- Not for cool-only or heat-strip air conditioners
- Wall thermostat not included
- Free shippingOrders over $200, lower 48
- 30-day returnsUnopened, 10 percent restocking
Reviews
Full specifications
| Part number | 8630A635 |
|---|---|
| Includes | Heat pump ChillGrille ducted ceiling assembly with control box, filters and hardware. Thermostat and rooftop unit sold separately. |
| Also needs | Coleman-Mach heat pump rooftop unit. 12 V heat pump wall thermostat (not included). Roof gasket 8332-3301 (not included). |
| Shipping weight | 8 lb |
| Roof opening | 14 x 14 in |
| Airflow | Ducted |
| Heat | Heat pump, heat ready |
| Controls | 12 V heat pump wall thermostat |
| Compatible controls | Control box included (heat pump). Wall thermostat per the 2025 Coleman-Mach catalog: 9420-391 WiFi, 9420A382 digital or 9630-3351. |
| Not for | Not for non-ducted RVs; Not for cool-only or heat-strip air conditioners; Wall thermostat not included |
What's in the box
What is in the box
- Coleman-Mach 8630A635 heat pump ChillGrille ducted ceiling assembly, white, with heat pump control box, washable filters and mounting hardware
- Not included: rooftop unit, wall thermostat, heat strip, roof gasket
Questions buyers ask
Questions buyers ask
Which thermostat do I need?
A 12 V heat pump stat. Coleman-Mach lists the 9420-391 WiFi, the 9420A382 digital and the 9630-3351 for this assembly. The Kate RV ducted heat pump kits use the 9420-391.
Do I need the 9530A751 control package too?
No. The heat pump control box is built into this assembly. The 9530A751 is for the plenum-only 9430-4552 non-ducted assemblies.
Will it run my cool-only air conditioner?
No. For a cool-only or heat-strip unit, use the 8430A635 or 8430A633 ChillGrille.
Ducted or non-ducted?
Ducted only. If cold air blows straight out of the air conditioner into the room, you need the 9630A715 or 9630-725 non-ducted heat pump assembly.
Shipping?
Ground, free over $200, usually with the unit.
Shipping, returns and warranty
Free ground shipping in the lower 48 on orders over $200. In-stock orders placed by 12 PM ET on a weekday ship the same day from the nearest US warehouse. Check the box on delivery and report damage within 24 hours with photos; we file the carrier claim.
Returns within 30 days, unopened, with a 10 percent restocking fee; buyer pays return shipping. Kits that don't fit your opening and airflow come back free under the Fit Guarantee.
2-year Coleman-Mach limited warranty. We handle the claim with Airxcel.
About Coleman-Mach
About Coleman-Mach
Coleman-Mach rooftop air conditioners are built by Airxcel in Wichita, Kansas, and have been since 1967. They are the original equipment on more RVs than any other brand, which is why the ceiling assemblies, controls and repair parts are still available for units twenty years old. Every unit carries the Coleman-Mach 2-year limited warranty; Kate RV handles the claim with Airxcel for you.
