Complete non-ducted kit
Mach 3 Plus
13,500 BTU rooftop air conditioner with the ceiling assembly and roof gasket it needs
In stock. Ships today if ordered by 12 PM ET on a weekday.
Right for your RV if
- Your roof opening is 14 x 14 in, the standard for Coleman-Mach, Dometic, Furrion and Advent.
- Cold air blows straight out of the unit, no ceiling vents. Vents? Ducted kits
- Two people for the lift: the unit weighs 80 lb.
- Free shippingOrders over $200, lower 48
- Fit GuaranteeDoesn't fit your roof, it comes back free
- 30-day returnsUnopened, 10 percent restocking
- 2-year Coleman-Mach warrantyWe file the claim for you
What's in the box, top to bottom
The ceiling assembly is the part most stores leave out, and the unit won't run without it.

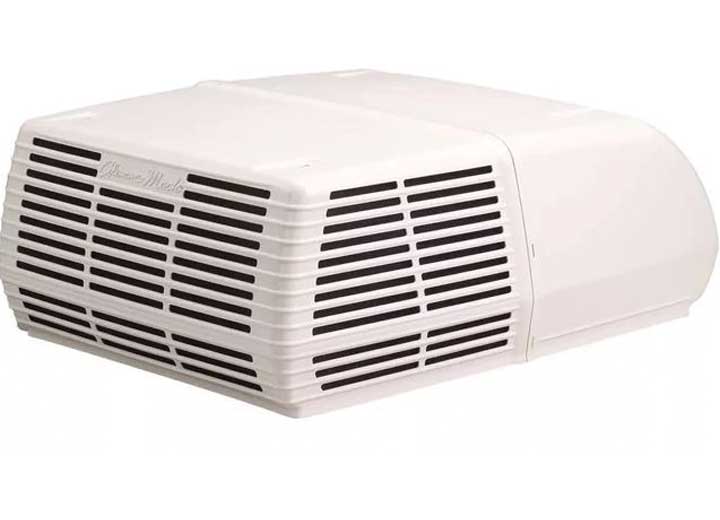

Rooftop unit
Mach 3 Plus 13,500 BTU RV Air Conditioner, textured white
Roof gasket and install kit
RV AC Roof Gasket and Install Kit, 14 x 14 in
Ceiling assembly
Deluxe Non-Ducted Ceiling Assembly, heat ready
Will it run on my generator?
On a 2,200 W inverter like a Honda EU2200i, yes, with the soft start. Without it, plan on about 3,500 W to start the compressor.
Reviews
Full specifications
| Kit contents | 38203-066 + 9430E715 + 8332-3301 |
|---|---|
| Includes | rooftop unit + ceiling assembly + roof gasket (one complete non-ducted system). |
| Cooling | 13,500 BTU |
| Running current | 15.3 A full load at 115 V |
| Starting current | 63 A LRA |
| Generator to start | 3,500 W, or 2,200 W with soft start |
| Height above roof | 13.8 in |
| Shipping weight | 88 lb |
| Roof opening | 14 x 14 in |
| Airflow | Non-Ducted |
| Heat | Heat Ready |
| Controls | Deluxe knob |
| Shroud | Textured White |
| Replaces | Dometic Brisk II, Dometic FreshJet 3, Furrion Chill, Advent / Atwood, Any 14 x 14 in non-ducted rooftop unit |
| Warranty | 2-year Coleman-Mach limited warranty |
Questions buyers ask
Questions buyers ask
Is this everything I need?
Yes, for a non-ducted RV: unit, ceiling assembly, gasket. Four bolts and about two hours. Add the soft start if you camp on a small generator, and the heat strip if you want shoulder-season heat.
Will it run on my Honda EU2200i?
With the 1497-3601 soft start, yes. Without it, plan on about 3,500 W to start it.
Do I need a wall thermostat?
No. The controls are on the ceiling assembly.
How do I know my RV is non-ducted?
Cold air comes out of the air conditioner itself, not from vents along the ceiling. If you have ceiling vents, you need the ducted kit.
How does it ship?
Ground, free over $200 in the lower 48, from the nearest US warehouse. In-stock orders placed by 12 PM ET on a weekday ship the same day. Inspect on delivery; report damage within 24 hours with photos and we file the claim.
Shipping, returns and warranty
Free ground shipping in the lower 48 on orders over $200. In-stock orders placed by 12 PM ET on a weekday ship the same day from the nearest US warehouse. Check the box on delivery and report damage within 24 hours with photos; we file the carrier claim.
Returns within 30 days, unopened, with a 10 percent restocking fee; buyer pays return shipping. Kits that don't fit your opening and airflow come back free under the Fit Guarantee.
2-year Coleman-Mach limited warranty. We handle the claim with Airxcel.
About Coleman-Mach
About Coleman-Mach
Coleman-Mach rooftop air conditioners are built by Airxcel in Wichita, Kansas, and have been since 1967. They are the original equipment on more RVs than any other brand, which is why the ceiling assemblies, controls and repair parts are still available for units twenty years old. Every unit carries the Coleman-Mach 2-year limited warranty; Kate RV handles the claim with Airxcel for you.
