Complete ducted kit
Mach 3 Plus
13,500 BTU rooftop air conditioner with the ceiling assembly and roof gasket it needs
In stock. Ships today if ordered by 12 PM ET on a weekday.
Right for your RV if
- Your roof opening is 14 x 14 in, the standard for Coleman-Mach, Dometic, Furrion and Advent.
- Cold air comes from vents along the ceiling. No vents? Non-ducted kits
- Two people for the lift: the unit weighs 80 lb.
- Free shippingOrders over $200, lower 48
- Fit GuaranteeDoesn't fit your roof, it comes back free
- 30-day returnsUnopened, 10 percent restocking
- 2-year Coleman-Mach warrantyWe file the claim for you
What's in the box, top to bottom
The ceiling assembly is the part most stores leave out, and the unit won't run without it.

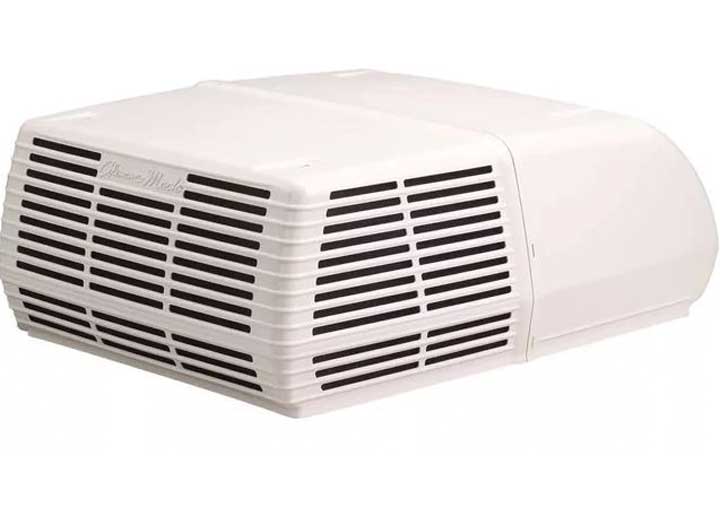

Rooftop unit
Mach 3 Plus 13,500 BTU RV Air Conditioner, textured white
Roof gasket and install kit
RV AC Roof Gasket and Install Kit, 14 x 14 in

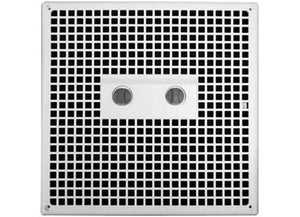

Ceiling assembly
Manual Control Ducted Ceiling Assembly, cool only
Will it run on my generator?
On a 2,200 W inverter like a Honda EU2200i, yes, with the soft start. Without it, plan on about 3,500 W to start the compressor.
Reviews
Full specifications
| Kit contents | 38203-066 + 8330A763 + 8332-3301 |
|---|---|
| Includes | rooftop unit + manual-control ducted ceiling assembly + roof gasket (one complete ducted system, no thermostat needed). |
| Cooling | 13,500 BTU |
| Running current | 15.3 A full load at 115 V |
| Starting current | 63 A LRA |
| Generator to start | 3,500 W, or 2,200 W with soft start |
| Height above roof | 13.8 in |
| Shipping weight | 88 lb |
| Roof opening | 14 x 14 in |
| Airflow | Ducted |
| Heat | Cool Only |
| Controls | Ceiling knob |
| Shroud | Textured White |
| Replaces | Dometic Brisk II, Dometic FreshJet 3, Furrion Chill, Advent / Atwood, Any 14 x 14 in ducted rooftop unit |
| Warranty | 2-year Coleman-Mach limited warranty |
Questions buyers ask
Questions buyers ask
Do I need a wall thermostat?
No. The controls are on the ceiling assembly. If you have one on the wall now it is simply not used by the new system.
Can I add heat later?
Not with this assembly. For heat strip capability, buy the heat-ready ChillGrille kit.
Will it run on my Honda EU2200i?
With the 1497-3601 soft start, yes. Without it, plan on about 3,500 W to start the unit.
How do I know my RV is ducted?
Cold air comes out of vents along the ceiling, not from the air conditioner itself. If it blows straight out of the unit, you need the non-ducted kit.
How does it ship?
Ground, free over $200 in the lower 48, from the nearest US warehouse. In-stock orders placed by 12 PM ET on a weekday ship the same day. Inspect on delivery; report damage within 24 hours with photos and we file the claim.
Shipping, returns and warranty
Free ground shipping in the lower 48 on orders over $200. In-stock orders placed by 12 PM ET on a weekday ship the same day from the nearest US warehouse. Check the box on delivery and report damage within 24 hours with photos; we file the carrier claim.
Returns within 30 days, unopened, with a 10 percent restocking fee; buyer pays return shipping. Kits that don't fit your opening and airflow come back free under the Fit Guarantee.
2-year Coleman-Mach limited warranty. We handle the claim with Airxcel.
About Coleman-Mach
About Coleman-Mach
Coleman-Mach rooftop air conditioners are built by Airxcel in Wichita, Kansas, and have been since 1967. They are the original equipment on more RVs than any other brand, which is why the ceiling assemblies, controls and repair parts are still available for units twenty years old. Every unit carries the Coleman-Mach 2-year limited warranty; Kate RV handles the claim with Airxcel for you.
