Control package

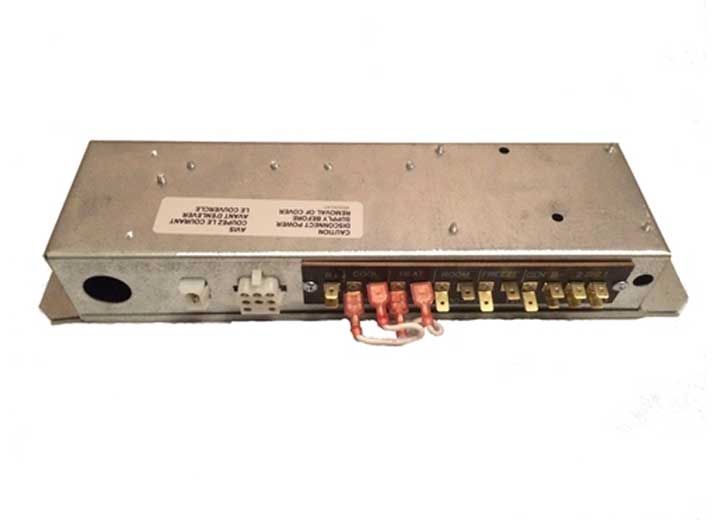

9630A751 Digital Zone Control Box
Digital zone control box for one heat pump. Thermostat and room sensor sold separately.
In stock. Ships today if ordered by 12 PM ET on a weekday.
Check the fit
- Fits Coleman-Mach digital zone systems, heat pumps.
- Needs: A Coleman-Mach digital zone system with a 9330A3341 or 9330A3351 thermostat.
12 V DC from the coach. - Not for single-zone wall stats
- Not for 8-series zone systems
- Heat strip not included
- Not for Dometic or Furrion
- Free shippingOrders over $200, lower 48
- 30-day returnsUnopened, 10 percent restocking
Reviews
Full specifications
| Part number | 9630A751 |
|---|---|
| Fits | Coleman-Mach digital zone systems, heat pumps |
| Includes | Digital zone control box for one heat pump. Thermostat and room sensor sold separately. |
| Also needs | A Coleman-Mach digital zone system with a 9330A3341 or 9330A3351 thermostat. 12 V DC from the coach. |
| Shipping weight | 3 lb |
| Airflow | Ducted or Non-Ducted |
| Heat | Heat Pump |
| Controls | Zone |
| Replaces | Coleman-Mach 9630A751 zone control box |
| Compatible controls | 9330A3341 and 9330A3351 digital zone thermostats only. |
| Not for | Not for single-zone wall stats; Not for 8-series zone systems; Heat strip not included; Not for Dometic or Furrion |
What's in the box
What is in the box
- Coleman-Mach 9630A751 digital zone control box assembly, heat pump, heat ready
- Not included: zone thermostat, remote room sensor, heat strip, ceiling assembly
Questions buyers ask
Questions buyers ask
Do I need this or the 9530A751?
This one if your heat pump runs from a 9330 digital zone thermostat. The 9530A751 is for a single heat pump on a single wall stat.
How do I set it up?
Match the zone jumper to the board you are replacing and set the HP jumper to HP for a heat pump. The green LED flashes the zone number, then goes steady once it talks to the thermostat.
Will it run a heat strip?
Yes, on a heat-ready air conditioner: 9233A4551, or 47233-4551 on the 4700 series.
Shipping?
Ground; free over $200.
Shipping, returns and warranty
Free ground shipping in the lower 48 on orders over $200. In-stock orders placed by 12 PM ET on a weekday ship the same day from the nearest US warehouse. Check the box on delivery and report damage within 24 hours with photos; we file the carrier claim.
Returns within 30 days, unopened, with a 10 percent restocking fee; buyer pays return shipping. Kits that don't fit your opening and airflow come back free under the Fit Guarantee.
2-year Coleman-Mach limited warranty. We handle the claim with Airxcel.
About Coleman-Mach
About Coleman-Mach
Coleman-Mach rooftop air conditioners are built by Airxcel in Wichita, Kansas, and have been since 1967. They are the original equipment on more RVs than any other brand, which is why the ceiling assemblies, controls and repair parts are still available for units twenty years old. Every unit carries the Coleman-Mach 2-year limited warranty; Kate RV handles the claim with Airxcel for you.
