Ceiling assembly

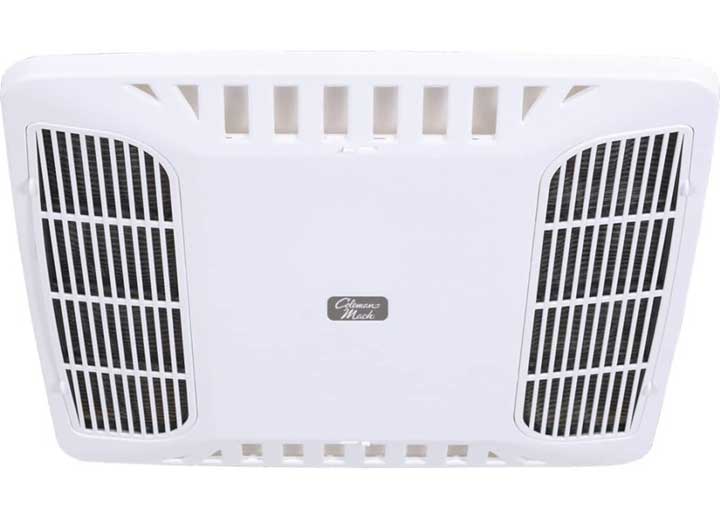

9430-4552 Non-Ducted Plenum Kit
Non-ducted ceiling plenum with grille and filter, white. Control box and thermostat sold separately.
In stock. Ships today if ordered by 12 PM ET on a weekday.
Check the fit
- Fits Coleman-Mach 3 / 15 / 10 / 8 (non-ducted).
- Standard 14 x 14 in roof opening.
- Needs: Coleman-Mach rooftop unit.
A control package (8330-752, 9330C755 or 9530A751).
A 12 V wall thermostat and a 12 V DC supply to it from the RV. - No control box included
- No thermostat included
- Not for ducted RVs
- Not for Dometic or Furrion units
- Free shippingOrders over $200, lower 48
- 30-day returnsUnopened, 10 percent restocking
Reviews
Full specifications
| Part number | 9430-4552 |
|---|---|
| Fits | Coleman-Mach 3 / 15 / 10 / 8 (non-ducted) |
| Includes | Non-ducted ceiling plenum with grille and filter, white. Control box and thermostat sold separately. |
| Also needs | Coleman-Mach rooftop unit. A control package (8330-752, 9330C755 or 9530A751). A 12 V wall thermostat and a 12 V DC supply to it from the RV. |
| Shipping weight | 6 lb |
| Roof opening | 14 x 14 in |
| Airflow | Non-Ducted |
| Heat | Heat Ready |
| Controls | 12V wall thermostat |
| Replaces | Coleman-Mach 9430 series knob-control non-ducted ceiling assemblies (when converting to a wall thermostat), Coleman-Mach 9430-4552 plenum kit |
| Compatible controls | Control package required: 8330-752 cool only, 9330C755 heat ready, or 9530A751 heat pump. Wall thermostat required: 9420-351, 9420-352, 9420-391 WiFi, or 9420A382. |
| Not for | No control box included; No thermostat included; Not for ducted RVs; Not for Dometic or Furrion units |
| Warranty | 1-year Coleman-Mach limited warranty |
What's in the box
What is in the box
- Coleman-Mach 9430-4552 non-ducted ceiling plenum with grille, filter and down louvers, white
- Not included: control box, wall thermostat, thermostat wire, heat strip, rooftop unit
Questions buyers ask
Questions buyers ask
Which control package do I need?
8330-752 for cool only, 9330C755 if you want a heat strip now or later, 9530A751 for a Coleman-Mach heat pump. The Conversion Kit pairs them for you.
Which thermostat?
A Coleman-Mach 12 V single-stage stat: 9420-351 analog heat/cool or 9420-391 WiFi with the 9330C755; 9420-391 or 9420A382 with the 9530A751 heat pump box.
Can I add a heat strip?
Yes, with the 9330C755 heat-ready box: 38203-4551 for Mach 3, 15 and 10, 37203-4551 for the Mach 8.
I just want app control without running wires. Is there an easier way?
Yes. The 9430-720 or 9430-725 Bluetooth ceiling assembly replaces the knob assembly and runs from your phone, no wall thermostat or 12 V run needed.
Shipping?
Ground; free over $200.
Shipping, returns and warranty
Free ground shipping in the lower 48 on orders over $200. In-stock orders placed by 12 PM ET on a weekday ship the same day from the nearest US warehouse. Check the box on delivery and report damage within 24 hours with photos; we file the carrier claim.
Returns within 30 days, unopened, with a 10 percent restocking fee; buyer pays return shipping. Kits that don't fit your opening and airflow come back free under the Fit Guarantee.
2-year Coleman-Mach limited warranty. We handle the claim with Airxcel.
About Coleman-Mach
About Coleman-Mach
Coleman-Mach rooftop air conditioners are built by Airxcel in Wichita, Kansas, and have been since 1967. They are the original equipment on more RVs than any other brand, which is why the ceiling assemblies, controls and repair parts are still available for units twenty years old. Every unit carries the Coleman-Mach 2-year limited warranty; Kate RV handles the claim with Airxcel for you.
